Suzhou Energy Tool Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | ENG |
| Model Number : | 251001 |
| Certification : | API, AISI, ISO |
| Price : | USD 2000-20000 Unit |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 5000pcs / year |
| Delivery Time : | 5-8 weeks |
API Oilfield Drilling Tool 22.5 Inch Hard Rock PDC Drill Bit
PDC drill bits generate lower noise levels compared to other types, improving the working environment and minimizing disturbances to the surrounding environment, ensuring safety and environmental friendliness during operations.
Offering excellent drilling stability and vibration control, PDC
drill bits are applicable to different wellbore diameters, ensuring
precise control over borehole diameter and shape.
Continuous innovation and optimization of blade materials and
design enhance the wear resistance and high-temperature performance
of PDC drill bits, extending their operational lifespan.
| Condition: | New Manufacture | Brand Name: | ENG |
| Machining: | OEM,Customize based on drawing | Machine Type: | PDC Drilling Equipment |
| Machinery Test: | Provided | Body Material: | Alloy or Tungsten Carbide |
| Place Of Origin: | Suzhou | Available Size: | 3 7/8 inch ~26 inch |
| Certification: | API & ISO | Blade Quantity: | 3,4,5,6,7,8,9 Blades |
| Applicable: | Water,Oil,Gas,Petroleum Drilling | Cutter size: | 13,16,19 mm |
| Warranty: | 1 year | Formation: | Soft to hard |
| HS CODE | 8207191000 | Package: | Plywood Box or steel box |
Cutters
The primary contact point of a drill bit is its PDC cutters, which
are made of Polycrystalline Diamond Composite (PDC).
PDC bits excel at efficiently removing rock by chopping through it.
Operating in a challenging environment, PDC cutters experience
frequent heating and cooling within the well.
To maximize performance, PDC cutters with superior thermal
stability and minimal thermal deterioration are preferred.
These optimized cutters demonstrate higher Rate of Penetration
(ROP) and enhanced wear resistance.
Nozzles
Drill bit nozzles play a crucial role in maintaining the
temperature of the PDC cutters and clearing the cutting zone.
By keeping the PDC cutters cool, the nozzles contribute to their
longevity and performance.
The positioning and angle of these nozzles significantly influence
the effectiveness of the drill bit. Properly placed nozzles ensure
efficient cooling and help prevent heat-related issues.
Additionally, the strategic arrangement of fluid channels, in
conjunction with the nozzle location, facilitates improved removal
of cuttings during drilling operations.

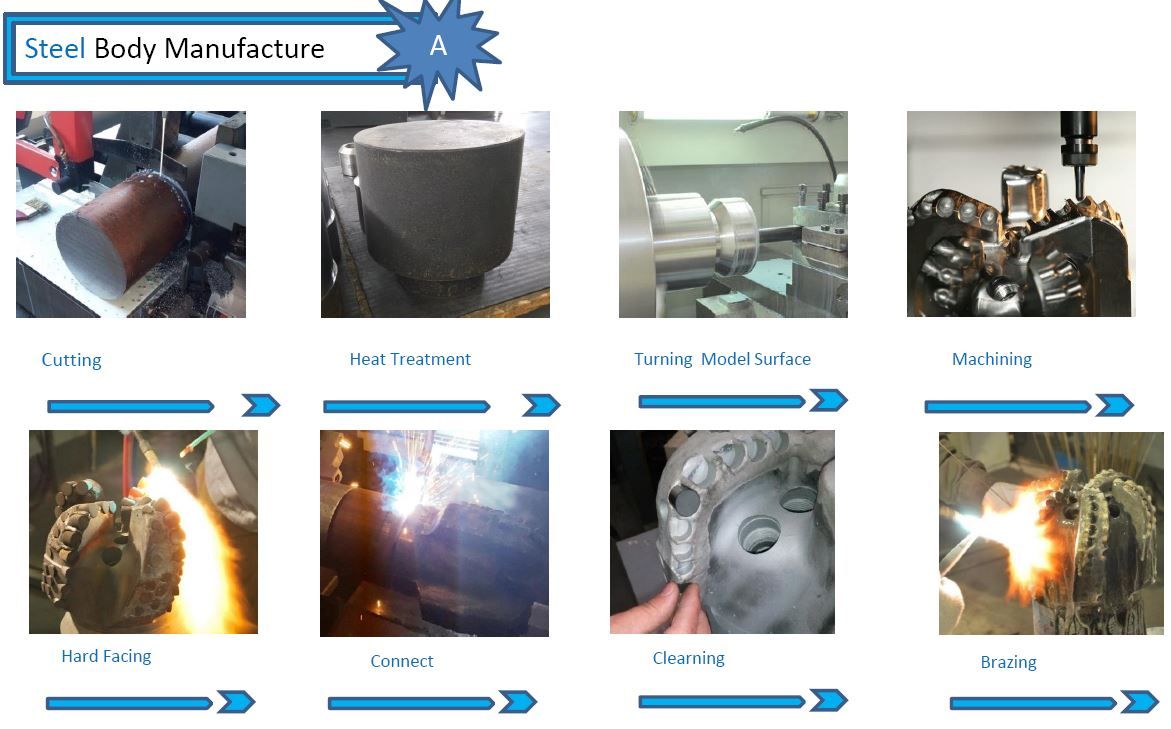

Production Processes:
Certifications:
Package & Shipment:
FAQ:
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
|
|
