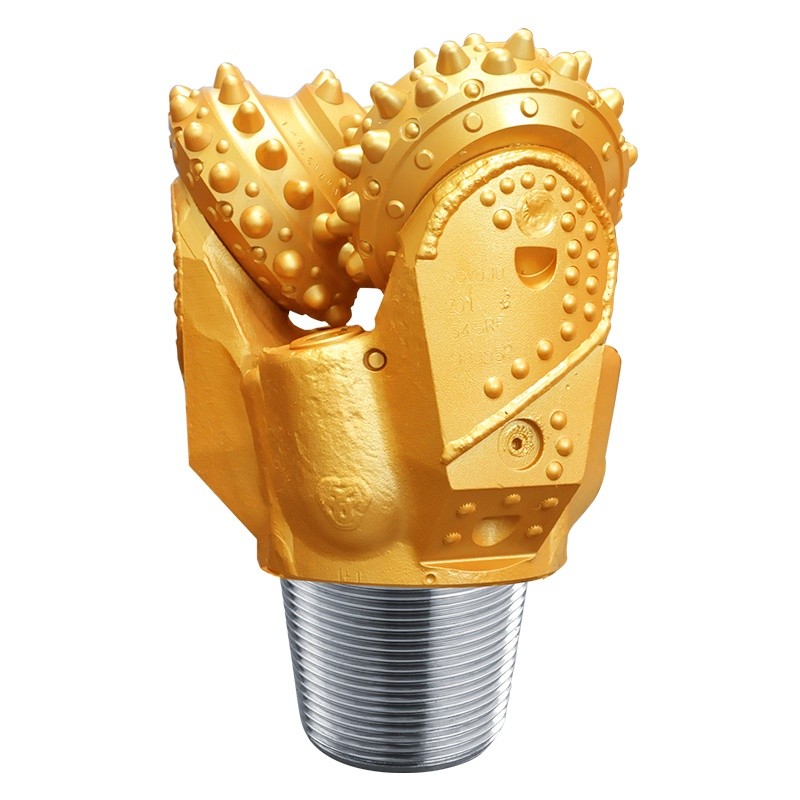

Tungsten Carbide Tooth Roller Tricone Hard Rock Drilling Bit
The IADC Roller-Cone Bit Classification Method is an industry-wide standard for the description of milled-tooth and insert-type roller-cone bits.
This coding system is based on key design- and application-related criteria.
The currently used version was introduced in 1992 and incorporates criteria cooperatively developed by drill bit manufacturers under the auspices of the Society of Petroleum Engineers.
CUTTING STRUCTURE
SHIRTTAIL PROTECTION
| Product Specifications | |
| Diameter | 9" (229mm) |
| IADC | 545 |
| Bearing Type | Roller-Ball-Roller-Thrust Button/Sealed Bearing |
| Drilling cycle type | Jet Air |
| Connection thread ty | 4 1/2'' REG |
| Operation Parameters | |
| Rotary speed (r/min) | 80-110 r/min |
| Weight on Bit (KN) | 13.5T / 29,762 lbs MAX |
| Air Back Pressure | 29-58 psi/0.2-0.4 MPa |
Certifications
Package&Shipping
FAQ
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
|
|
