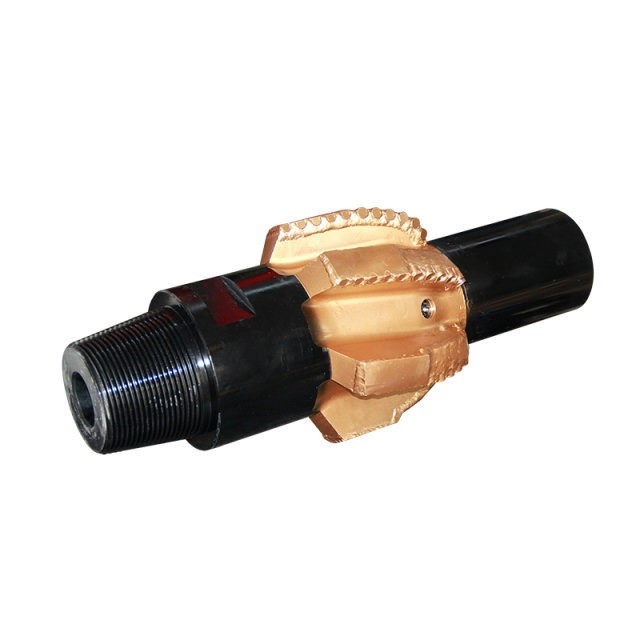

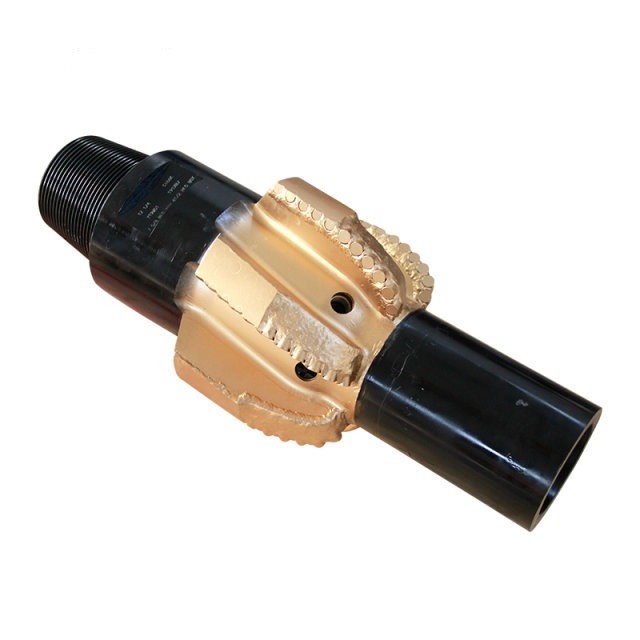

PDC Hole Opener for Wells Drilling
A hole opener is a device used to enlarge the borehole during a well drilling operation.
It can be positioned either above the drill bit or above a pilot run inside the existing borehole. Usages range from hydrocarbon drilling operations to water drilling or horizontal drilling.
Hole openers are also used when a hole must be logged, since logging tools generally cannot handle holes larger than 17 and a half inches in diameter.
Hole opener arms have to sustain heavy loads during operations and are generally made of high-grade alloy steel, welded onto a solid alloy steel body.
Some designs feature replaceable arms, allowing for size changes but decreasing overall robustness. Numerous designs exist, in sizes varying from a couple of inches to above 50".
They can have rolling cutters or drag blades, and can be used for either direct or reverse circulation applications.
| Product Specifications | |
| Diameter | 12 1/4'' |
| Blade | 6 |
| Cutter Size | 16mm |
| Nozzle | 6 |
| Gauge Protection | 3'' |
| Operation Parameters | |
| Rotary Speed (r/min) | 60-260 |
| Weight on Bit (KN) | 20-160 |
| Flow Rate (lps) | 38-62 |
| Formation | Medium hardness and low compressive strength, such as shale, limestone, sandstone, gypsum, etc. |
About Us
Certifications
Package&Shipping
FAQ
| Q: You are a trading company or manufacturer ? |
| A: Manufacturer, We are a 100% real factory with over 20 years' experience in water/oil/gas wells Drill Bits. |
| Q: How about your products ? |
| A : Both of tricone bits and PDC bits strictly conform to API 7 requirements and ISO9001. we will do kinds inspections before delivery, also cover for after-sales service. |
| Q: Package Methods ? |
| A: Normally wooden case, also can be steel box; can be customized if need. |
| Q: Payment Terms ? |
| A: we accept T/T, L/C, Paypal, Western Union, etc. |
| Q: Can I visit your factory ? |
| A: Yes, we welcome you to our factory all the time, will send invitation letters if need; also can show our workshop and warehouse online. |
|
|
