Diamond Drilling Bits 5-1/2 " PDC Bit Of Rock Of Oil Well Drilling Tool
1 . Descriptions:
What is PDC in Drilling Tools?
PDC stands for Polycrystalline Diamond Compact, a cutting material used in drill bits for oil and gas drilling.
PDC bits are made with synthetic diamond cutters, known for their
extreme hardness and wear resistance. These bits have
revolutionized the drilling industry by increasing drilling
efficiency, longevity, and cost-effectiveness.
Advantages of PDC Drill Bits
High Durability: PDC cutters are extremely hard, providing
long-lasting performance.
Fast Penetration Rate: The sharp cutting edges allow for efficient
drilling.
Cost-Effective: Longer lifespan reduces the need for frequent bit
replacement.
Versatile Application: Suitable for soft to medium-hard rock
formations
2. PDC Bit Specification:
Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.
SPECIFICATION | |
| Size : | 5-1/2 " inch (139.7mm) |
| Drill Body Type : | Steel Body |
| Blades Quantity : | 5 |
| Nozzles Quantity : | 5 |
| API Connection (in) : | 3-1/2" REG |
| Gauge Length (In): | 1.5 |
OPERATIONAL PARAMETERS | |
| Weight on Bit (KN): | 9 -67 |
| RPM Range(Rotary): | 80- DHM |
| Flow Rate(lps): | 29- 38 LPM |
| Make-Up Torque(KN): | 9.5 -12.2 KN.M |
3 . PDC Drill Bit profile
4 . Drill Bit PDC Cutters
Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.
5. PDC Drill Bit Nozzles
PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to improve the clearing of cuttings.

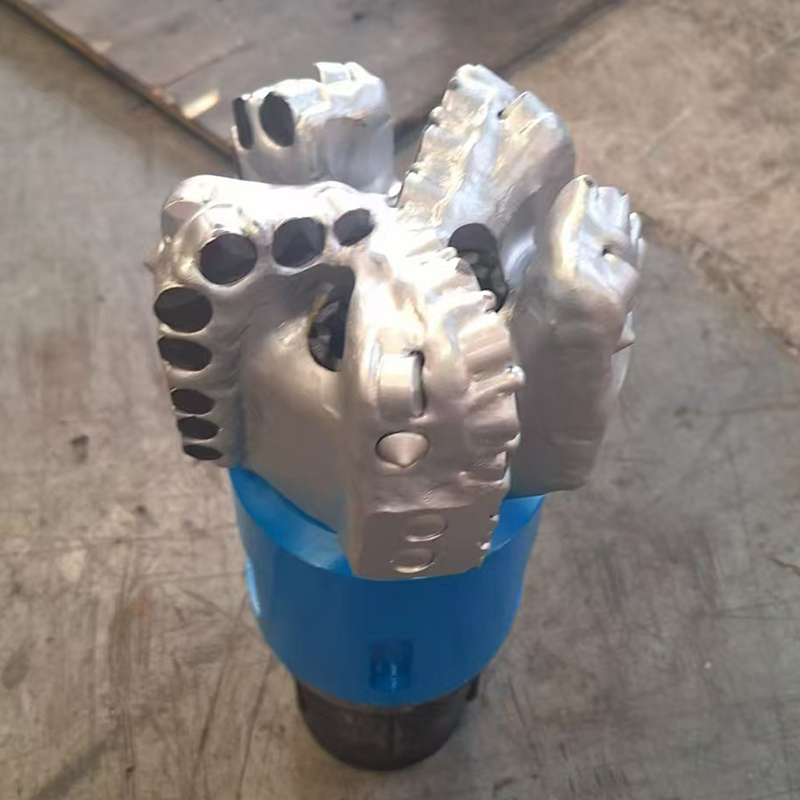

6. Steel Body PDC Bits
Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.
Steel bodies are considerably stronger than matrix bodies.
A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.
Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
|
|
