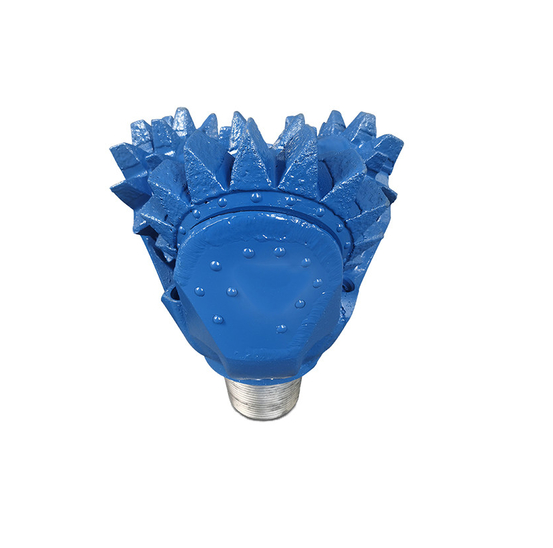

Three Rolling Cones 12-1/4 Inch Milled Tooth Bit Of Rotary Drill Rig Bit

1 . Descriptions:

Steel Tooth (or Mill Tooth) bits come in many shapes and sizes with multiple features, and cutting structures to combat downhole diversities in the different formations you may encounter.

Mill teeth (Steel teeth) tricone are used in the soft rock formation . Wide gaps between the protruding teeth prevent them from becoming blocked with material as they cut through the top layer of material.

The specialized design of Steel Tooth tricone bits with milled teeth not only facilitates effective cutting in soft rock formations but also underscores their versatility and adaptability in addressing the distinct challenges posed by various geological conditions encountered in drilling operations

2. Specification:

3 . Tricone Bit Profile

4 . Bearing Types

There are primarily three types of bearing designs used in tricone drilling bits:

• STANDARD OPEN BEARING ROLLER BIT:

On these bits the cones will spin freely. This type of bit has a front row of ball bearings and a back row of roller bearings.

• SEALED BEARING ROLLERS BITS

These bits have an O-Ring seal with a grease reservoir for bearing cooling. The seals acts as a barrier against mud and cuttings to protect the bearings

• JOURNAL BEARING ROLLER BITS

These bits are strictly oil/grease cooled with nose bearings, O-Ring seal and a race for maximum performance.

5. Question :

What we should be pay attention on choosing the tricone drill bit ?

• IADC code passport
• TCI & Steel tooth options
• Additional tungsten carbide inserts on heel rows
• Tungsten carbide coating on cone bodies
• Diamond coated tungsten carbide inserts on the gauge of the cones
• Tungsten carbide inserts on the shirttail of the legs
• Additional central nozzle for cleaning cones

The tricone feature is that they come with their own passport as below :

• The specification of the cones
• The quality stamp signed by the person who made and checked the bit
• The recommended drilling parameters to get the best performance out of the bit:
• Bit weight
• Rotation speed
• Flushing volume

Which type of tricone you should choose ?

It depends on the geology you are drilling in and the diameters of the borehole you are drilling. The International Association of Drilling Contractors (IADC) have developed an easy use step system to choose the right tricone for your geology with additional features such as bit protection for longer production life.

Suzhou Energy Tool Co., Ltd . (short for “ENG ” ) is a high-tech company formed by a group of drill bit experts with over 20 years of work experience in the world's top oil service companies. ENG has cooperated with many research institutes at home and has formed an advanced technological system based on market-oriented and continuously promoting technological innovation and product improvement. ENG‘S bits production lines are equipped with 5-axis machining centers, Modern lathes, and FMS (Flexible manufacturing system ) and can produce matrix body and steel body PDC bits from 3-1/4” to 26” in diameter.

ENG has been keeping on  producing high-quality products to meet the buyer diffferent requirement of different drilling well and rock fromation . The company’s QMS has been award  API, ISO 9001 certification for many years. ENG has Obtained  21 patents by Chinese government .On the products Research and Development, ENG has built the basis of 3-dimensional CAD and PDM (Product Data Management ), can technically control the whole process of product manager, so that the product development can be done in a fast and precise manner to maximally meet the time and function requirement of the market for product lifecycle management.

ENG developed different performance series PDC cutters for PDC bit to meet different drilling applications and drilling requirements of different formations. Some PDC Cutter is imported from the USA Or Europe. ENG's advantage is high product quality, short delivery time, small lot, and multi-types. The products have been exported to over 10 countries Such as the USA, Australia, Indonesia, Thailand, Malaysia, Indonesia, Argentina, and so on.
