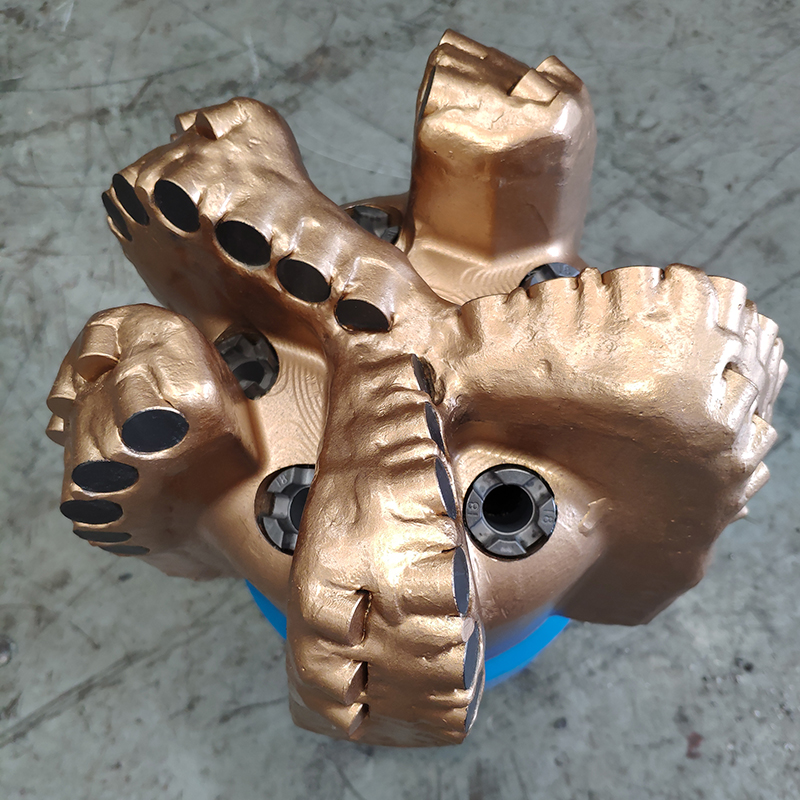

PDC Drill Bit 6 Inch 5 Blades Diamond Drilling Tool of oilfeild

1 . Descriptions:

Steel and matrix materials represent contrasting characteristics. Steel possesses the ability to withstand significant impact loads, but it is comparatively softer and lacks inherent protective properties. The inherent strength and ductility of steel contribute to the high impact resistance of steel-bit bodies. In comparison to matrix bodies, steel bodies exhibit significantly greater strength.

2. Specification:

Polycrystalline diamond compacts PDC bit in the Oil and Gas Industry PDC bits get their name from the polycrystalline diamond compacts used for their cutting structure. A PDC bit is a drill bit fitted with industrial diamond cutters instead of hardened metal teeth.

SPECIFICATION

Size : 6inch (152.4 mm)
Drill Body Type : Steel Body
Blades Quantity : 7
Nozzles Quantity : 4
API Connection (in) : 3-1/2" REG
Gauge Length (In): 2

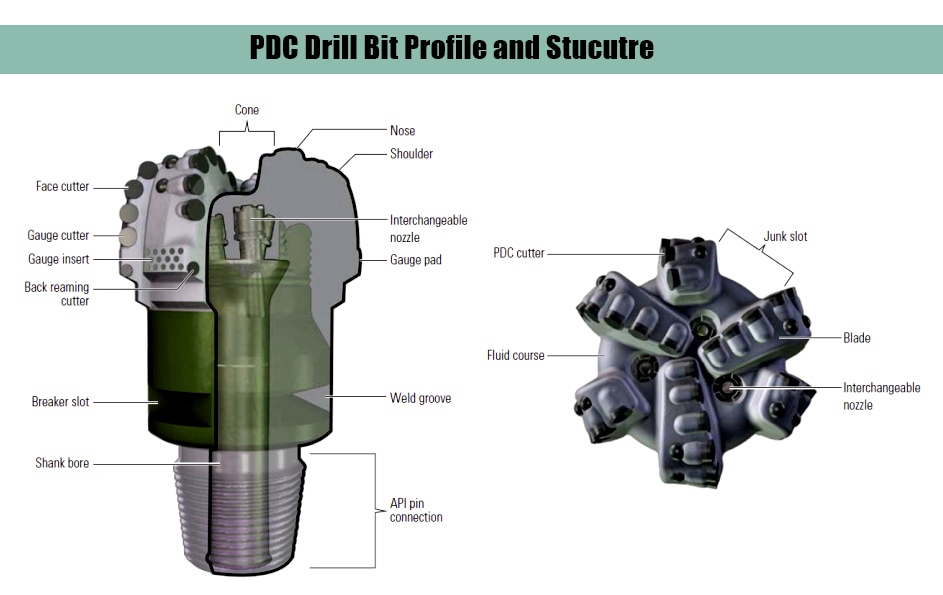

3 . Tricone Bit profile:

4 . Drill Bit PDC Cutters

Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.
The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.
PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. Drill Bit Nozzles

Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.
Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.
Fluid channels also complement nozzle placement to imp

Suzhou Energy Tool Co., Ltd . (short for “ENG ” ) is a high-tech company formed by a group of drill bit experts with over 20 years of work experience in the world's top oil service companies. ENG has cooperated with many research institutes at home and has formed an advanced technological system based on market-oriented and continuously promoting technological innovation and product improvement. ENG‘S bits production lines are equipped with 5-axis machining centers, Modern lathes, and FMS (Flexible manufacturing system ) and can produce matrix body and steel body PDC bits from 3-1/4” to 26” in diameter.

ENG has been keeping on  producing high-quality products to meet the buyer diffferent requirement of different drilling well and rock fromation . The company’s QMS has been award  API, ISO 9001 certification for many years. ENG has Obtained  21 patents by Chinese government .On the products Research and Development, ENG has built the basis of 3-dimensional CAD and PDM (Product Data Management ), can technically control the whole process of product manager, so that the product development can be done in a fast and precise manner to maximally meet the time and function requirement of the market for product lifecycle management.

ENG developed different performance series PDC cutters for PDC bit to meet different drilling applications and drilling requirements of different formations. Some PDC Cutter is imported from the USA Or Europe. ENG's advantage is high product quality, short delivery time, small lot, and multi-types. The products have been exported to over 10 countries Such as the USA, Australia, Indonesia, Thailand, Malaysia, Indonesia, Argentina, and so on.
